1. NQRduck Simulator Tutorial 🦆#

Introduction#

This Tutorial gives a short overview of how to use the NQRduck Simulator. The NQRduck Simulator is a module of the NQRduck program that allows you to simulate NQR signals and spectra.

Requirements#

Steps (Linux)#

  1. Switch to the Spectrometer module in the NQRduck program.

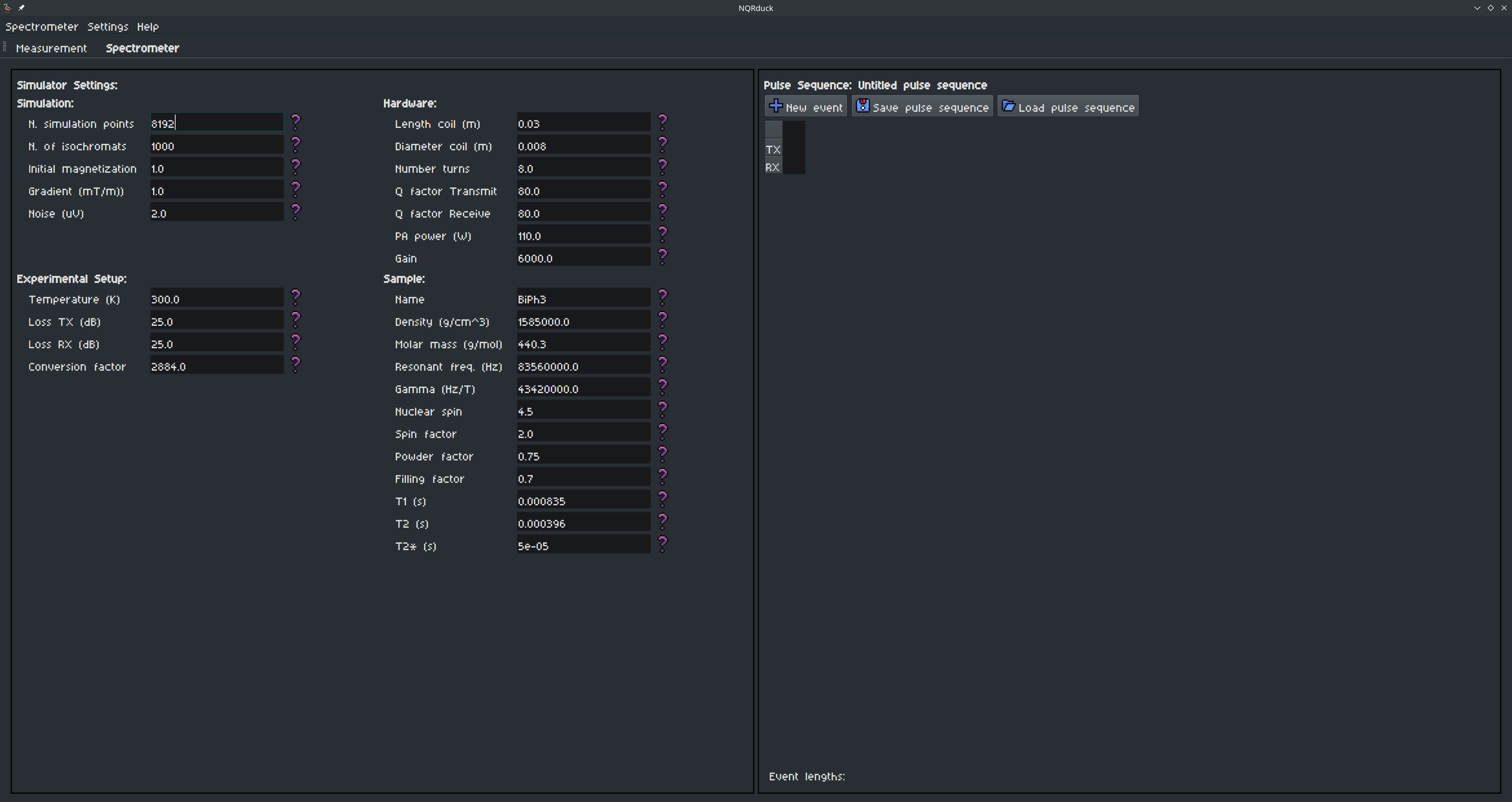

The Spectrometer module.

Figure: The Spectrometer module. The Settings are on the left side and the Pulse Programmer on the right side.

  1. You can now see two different sections in the Spectrometer module:

    • The left side are the spectrometer Settings. These are values that don’t change during a Pulse Sequence.

    • The right side is the Pulse Programmer. Here you can create sequences of pulses that are executed during the simulation.

  2. Create a simple Free Induction Decay (FID) sequence in the Pulse Programmer on the right side:

    • A sequence is made up of different Events that are executed subsequently. Different Events are rows in the Pulse Programmer table.

    • For every Event you can specify a certain duration and a name.

    • Every Event now has Pulse Parameters associated with it. For the Simulator, these are the TX and the RX Pulse Parameters.

Figure: An exemplary FID sequence.

Description

a.) The different events:
Pulse: Our TX Pulse excites the sample and is set active by adjusting the relative TX Amplitude to a value larger than 0 (usually 1.0).
Blank: Waiting time between the TX Pulse and RX Readout to await coil ringing.
RX: The ADC Readout that measures the signal. Without an RX event, the whole simulation appears in the plot.
TR: The repetition time between the different averages. Not strictly necessary for the simulation right now.

b.) The Pulse Parameters for the selected event.

c.) The Pulse Parameters for the Pulse Event.

d.) The Pulse Parameters for the RX Event.

e.) The duration of the different events.

You can add new Events by clicking on the New Event button. Events can be moved by clicking the purple Arrows. You can delete an Event by clicking on the garbage can icon. The Event duration and name can be changed.

Advisable durations for the different events are:

  • Pulse: 3µs - Relative TX Amplitude: 1.0

  • Blank: 8µs

  • RX: 150µs

  • TR: 10ms (not strictly necessary for the simulation, be careful since this will also ‘use up’ your simulation points.)

  1. You can now adjust the settings of the Simulator on the right side. Different settings are for example the number of simulation points or the noise level.

  2. To start the simulation, switch back to the Measurement tab. Enter a Target Frequency of 83.56MHz and 100 Averages. Now press the Start Measurement button.

  3. You should see an exponential decay in the plot. This is the FID signal that you just simulated.

  • The signal might look weird if you didn’t set the correct Pulse Parameters. Try to adjust either the length of your TX event or the pulse power to achieve a $\frac{\pi}{2}$ flip angle. If your resolution looks low, try adjusting the number of simulation points in the Settings tab.

  1. Try setting the experiment temperature to 77K and see how the signal changes.

  2. Save your pulse sequence by clicking on the Save pulse sequence button in the Pulse Programmer.

  3. Next try to implement a Spin Echo (SE) sequence. Try to center your RX event around the echo of the signal. Play around with relaxation times and see how the signal changes.

  4. If you found a pulse sequence that you like, you can save it by clicking on the Save pulse sequence button in the Pulse Programmer.

  5. We will now run these sequences on the real hardware. See Tutorial 2 for more information.

Notes:#

  • With some of the last updates I broke the signal processing options. I will fix this in the next updates. For now, you can only simulate the signal and not process it.

  • The Measurement Frequency doesn’t have any effect on the simulation right now. It is only used for the real hardware.
